Relate the structure of the respiratory system to the process of ventilation

Figure 1

The respiratory system is made up of the
· Nose
· Pharynx
· Larynx
· Trachea
· Bronchi
· Bronchioles
· Alveoli
· Lungs
· Diaphragm
Figure 1

The nose
The nose is made up of bone, cartilage and fatty tissue; it has two holes known as the nostrils. It is separated into two air passages. Goblet cells in the lining of the nose secrete mucus to help trap and remove unwanted antigens. The nose contains tiny hairs known cilia these form the nose lining and keep the mucus moving towards the exit of the nose. Air enters and leaves the respiratory system through the nose.
(BBC, 2009)

Trachea
This is a long tube, around 12 centimetres in length and 2.5 centimetres wide, which is made up of rings of cartilage to keep it open to allow air to flow down it.

Bronchi
Two cartilage-ringed tubes containing smooth muscle tissue, these tubes branch off from the trachea, the right primary bronchus is wider than the left, which makes it more venerable to foreign antigens. These allow air to travel into the lungs, and enter smaller tubes. The bronchi are able to expand during inspiration, to allow the lungs to expand, and contract during expiration as air is exhaled. (Probert, 2010)

Bronchioles
Small thin tree- like network of tubes that contain less cartilage than the bronchi. The bronchioles become smaller than 0.5 mm in diameter, irregularly shaped discs of cartilage support the first few sections, while the latest levels of the tree have no support whatsoever, these sub-divide into the alveolar ducts. By this time air reaches this part all the foreign antigens have been removed and the air travels into the alveoli.

Alveoli
Tiny air sacs that look like a bunch of grapes, they are one cell thick, this helps to speed up gaseous exchange, this action is vital to live. The lung has many millions of alveoli, this gives the lungs a larger surface area for gas exchange. The alveoli are covered in inter linking capillaries through which blood flows. The alveoli diffuse oxygen into the blood stream which bines with the haemoglobin and gets carried round the body, carbon dioxide is then diffused back from the used blood cells into the alveoli and gets breathed out as this is poisonous to the body.
(Think Quest, 2006)

Diaphragm and intercostals muscles
The alveoli are ventilated by the action of the diaphragm and the intercostals muscles.
The diaphragm is a sheet of tendon surrounded by muscles, when relaxed it is positioned into a dome shape by the organs. When the diaphragm muscles contract it becomes flatter. Intercostal muscles are located between the ribs externally and internally. These intercostal muscles allow the ribcage to pivot upwards and outwards, and downwards and inwards. Breathing involves the diaphragm, intercostals muscles and ribcage creating pressure changes. When we breathe in, the external intercostals muscles contract and the rib cage moves upwards and outwards, creating an increase in lung volume and a decrease in pressure. At the same time the diaphragm muscles contract and causes it to move downwards. When we breathe out, internal intercostals muscles contract and the ribcage moves downwards and inwards, causing a decrease in lung volume and an increase in pressure, whilst the diaphragm muscles relax, and the it returns to the dome shape.
(Wright, 2007)

Explain the electrical activity of the heart during a heart beat

Figure 9

The heart is myogenic (self stimulated), it works by two parts of the nervous system. The sympathetic part of the nervous system accelerates the heart beat, this helps to meet the bodies demands ie when exercising, and the parasympathetic system stops and slows things down.
The rhythmic sequence of contractions (heart beat) is coordinated by the sino atrial (SA), and atrio ventricular (AV) nodes. The upper wall of the right atrium is where the SA node is located and is responsible for sending electrical impulses that initiates atrial contraction. Once the impulse reaches the lower right atrium where the AV node is situated, the impulse remains static for a short period of time, allowing all the blood in the atria to fill the ventricles, before being conducted through several structures which leads to contraction of the ventricles. (Class notes, 2010)

Describe the structure of the heart and explain the cardiac cycle

figure 8

The heart is a muscular pump that pushes blood around the body, found between the breastbone and the ribs. It is a cardiac muscle and it works involuntary. The heart has for chambers, the atria are the upper chambers, which receive blood, and the ventricles eject blood into the arteries. It has four valves separating the chambers, Tricuspid, separates the right atrium from the right ventricle, Pulmonary valve, separates the right ventricle from the pulmonary artery, Bicuspid valve separates the left atrium from the left ventricle and the Aortic valve separates the right ventricle from the aorta. The heart has three layers, epicardium, gives it a smooth texture, myocardium, responsible for the pumping action, made up of muscle fibres which connect to electrical synapses, and endocardium, inner layer that connect to large blood vessels. The left side of the heart receives oxygenated blood and the right receives deoxygenated blood. (Class notes, 2010)

Cardiac cycle
The cardiac cycle is the sequence of events including contraction and relaxation of the heart. The right side of the heart receives deoxygenated blood from the vena cava, and fills the right atrium, it then flows through the tricuspid valve and into the right ventricle. The tricuspid valve is then forced shut by ventricular pressure, ventricular systole forces the blood up through the pulmonary valve in to the artery, the ventricles are at a diastole stage which makes the pulmonary valve close to prevent back flow. Once the blood reaches the lungs it becomes oxygenated blood. It then gets transported back to the heart via the pulmonary vein and entering the left atrium, from here it goes through the bicuspid valve into the left ventricle. It then gets pumped through the Aortic valve and exits the heart under great pressure out of the aorta which then travels round the body and goes to the cells that require oxygen, the cycle then starts over again. (Class note, 2010)

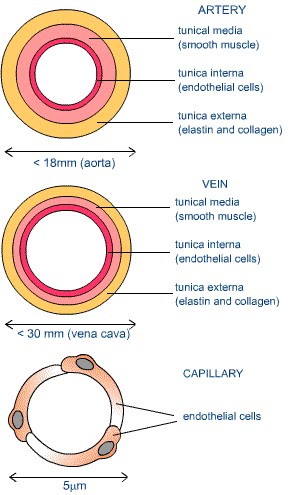

Describe the structure of the arteries, veins and capillaries and relate this to their function.

figure 7

Arteries
Arteries transport blood away from the heart; there are two types the pulmonary arteries and systemic arteries. Pulmonary arteries carry blood from the heart to the lungs where the blood picks up oxygen. Systemic arteries deliver blood to the rest of the body.
It has thick muscular and elastic walls as blood is pumped through at a high pressure, from the heart and so that they can expand and contract to push the blood through to the capillaries. They are under sympathetic nervous control that adjusts their diameter to increase or decrease their resistance to the flow of blood. As the arteries get nearer to the tissue they get narrower, these are known as arterioles.

Veins
As blood flows from the capillaries it enters slightly larger vessels know as venules, from here they join the veins. Veins carry deoxygenated blood with the exception of the pulmonary vein back to the heart. The walls are made up of elastic and muscular fibres and are thinner than arteries; it has a larger lumen than the arteries. The veins include valves to ensure the blood does not flow back in the wrong direction.

Capillaries
Capillaries are found at the end of the arterioles, they are the smallest blood vessels in the body; they take the blood through the tissue. They are only one cell thick this helps with diffusion of oxygen and glucose. (Wright, 2007)

Explain the transport of oxygen and carbon dioxide in the blood

figure 6

The red blood cells carry oxygen from the lungs to the rest of the body tissues. A small amount of oxygen (1.5 %) is carried in the plasma as a dissolved gas. Most oxygen (98.5 %) carried in the blood is bound to the protein haemoglobin in red blood cells. A fully saturated oxyhaemoglobin has four oxygen molecules attached. Oxygen is transported by blood to enable us to respire which is essential to live.
Carbon dioxide is more soluble in the blood than oxygen, about 5% is transported unchanged. Carbon dioxide combines with haemoglobin to form carbaminohaemoglobin. 10% of carbon dioxide binds to amino groups on the polypeptide chains of haemoglobin and plasma proteins. Carbon dioxide enters red blood cells in the tissue capillaries where it combines with water to form carbonic acid. This is normally a slow reaction, but the RBC is greatly accelerated by an enzyme called carbonic hydrase. (Smith, 2002)
The heart acts as a central pump that keeps the blood moving around the body. When air is inhaled, it enters the lungs and diffuses through the alveoli; the oxygen binds with the haemoglobin of the red blood cells to form oxyhaemoglobin. The blood then enters the pulmonary circulation system, where it gets pumped round to cells that require energy for cellular respiration. Oxygen diffuses out of the red blood cells and carbon dioxide diffuses in making the blood deoxygenated, it then travels back to the lungs and diffuses into the alveoli and is exhaled as the waste product carbon dioxide.
(Class notes, 2010)

Describe the structure of a red blood cell and explain how this relates to its function

Red blood cells have a unique shape for their function.

· Flattened, biconcave disc shape
· Don’t have a nuclei or mitochondria
· In adulthood they are produced in the bone marrow
· They live approximately 120 days
· They transport oxygen around the body
· Red colour due to haemoglobin.
(Smith, 2001)

Red blood cells are thinner in the centre and thicker around the edges. They are very flexible with the ability to twist and bend through the blood vessels, as these narrow and widen throughout the body. It function is to carry oxygen around the body to all the tissues from the lungs, the red blood cells than transport the carbon dioxide from the cells back to the lungs. The biconcave shape increases the cell's surface area and facilitates diffusion of oxygen and carbon dioxide into or out of the cell. With the red blood cell not containing a nuclei it helps contribute to increased haemoglobin content and gas-carrying capacity. (Walmsley, 2003)
Figure 5

Describe the components of plasma and explain their function

Plasma is the liquid component of blood, in which the red blood cells, white blood cells, and platelets are suspended. Plasma is mostly made up of water around 90-92% this helps with the transport of blood cells around the body, as it can flow easily. Plasma also contains dissolved salts (electrolytes) and proteins; it is a yellow coloured fluid that carries all blood cells.
Albumin is a protein contained in plasma, it helps keep fluid from leaking out of blood vessels and into tissues; this is useful for people that has lost large amounts of blood as it binds to and carries substances such as hormones and certain drugs. Plasma also contains clotting factors, such as fibrinogen, which control bleeding during an injury. (NHS, 2010)
Plasma contains other dissolved substances such as glucose, mineral ions, hormones and carbon dioxide; nutrients such as glucose and mineral irons, which have been digested and not used by the cells, will be transported to the kidneys and excreted as urine. During exercise excess carbon dioxide that has been formed will be transported by the plasma to the lungs and exhaled as a waste product.
figure 4

Describe the role of the nervous system in generating breathing rhythm

Breathing is automatic and is under the control of the brain and the automatic nervous system (ANS), this controls the functions that we do not think about but are necessary for life such as breathing, heart rate and blood pressure. The sympathetic side to the (ANS) is usually used when the body feels pressure, the parasympathetic helps the body to relax and conserve energy, and these both form part of the (ANS). The breathing rhythm is set to meet the needs of the body, the more carbon dioxide in the blood flow to the brain, will result in an increase of breathing in order to remove it, to speed up the reaction a signal is also sent to the heart, to increase the heart rate. This is all controlled by the medulla oblongata and the pons, which make up part of the brain stem.
(Wright, 2007)
Figure 3

Evaluate the conditions required for effective gaseous exchange

The exchange of gases is vital for our survival, gaseous exchange happens in thelungs, in the alveoli. For effective gaseous exchange a large surface area is needed to ensure an efficient gas exchange area, this is why the alveoli are tiny sacs bunched together to increase the area so that more gases can be diffused. The body would have to work harder to increase the oxygen intake and its supply of oxygen to the muscles if the surface area was smaller.
The thinner the cell wall the quicker diffusion can take place, the alveoli are made up of flattened epithelial cells making them only one cell thick, the capillaries are also only one cell thick, with the distance between the alveoli and capillaries being so thin it allows the gases to reach their destination quicker, letting oxygen diffuse into the blood and bind with the haemoglobin, making oxy-haemoglobin and then get transported around the body, carbon dioxide can diffuse back into the alveoli as a waste product ready to be exhaled. If the diffusion area were thicker this process would take longer.
The area needs to be moist, as gases need to be in solution to diffuse across a membrane, oxygen and carbon dioxide dissolve in this membrane. This makes it easier for the transportation as water can diffuse in and out of the alveoli. If the area weren’t moist the alveoli would dry out making diffusion harder. The water also contains a soapy surfactant, which reduces its surface tension and stops the alveoli collapsing. (Wright, 2007)
A steep concentration gradient of the gases needs to be maintained. Gases will always move from a high concentration to a low concentration, in a constant strive for equilibrium. This gradient is maintained by blood flow on one side carrying oxygen away quickly and by airflow on the other side. Oxygen can diffuse down its concentration gradient from the air to the blood, and carbon dioxide can diffuse down its concentration gradient from the blood to the air. (Wright, 2007
